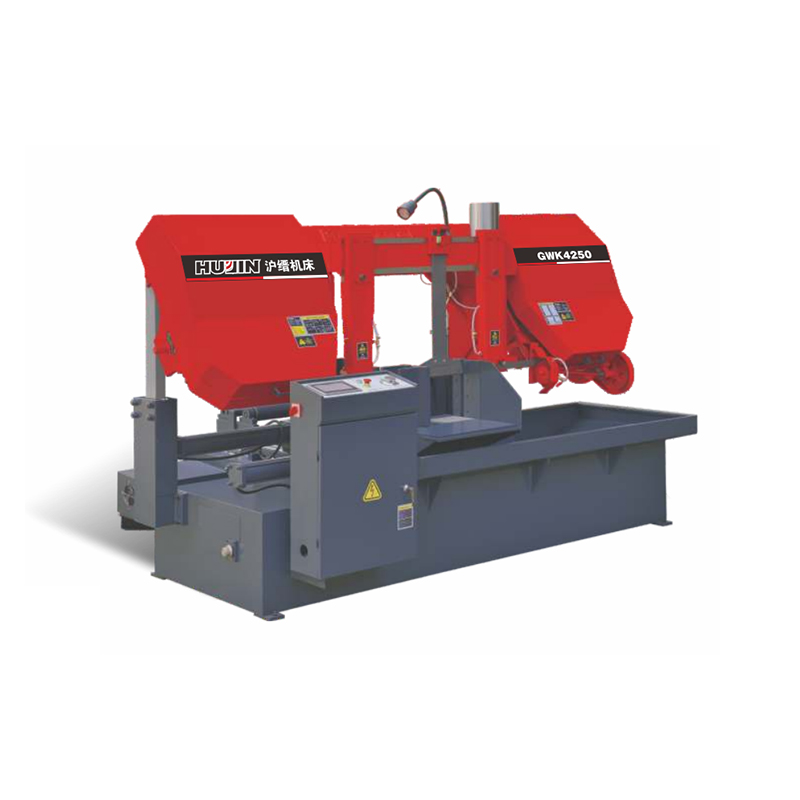

آلة النشر الشريطية الأفقية ذات العمود المزدوج: القطع الدقيق لقطع العمل الثقيلة

ال آلة النشر ذات العمود المزدوج الأفقي أصبح حل القطع المفضل لمحلات تصنيع المعادن ومراكز خدمة الصلب ومنشآت التصنيع الثقيلة التي تتطلب قطعًا دقيقًا وفعالاً لقطع العمل الكبيرة. تتميز هذه الماكينة بتصميم صلب مزدوج العمود يوفر ثباتًا سائدًا ودقة قطع مقارنةً بالمناشير ذات العمود الواحد، مع تحرك رأس المنشار عموديًا على طول أعمدة التوجيه الأرضية الدقيقة لتقديم عمليات قطع متسقة ومستقيمة عبر مجموعة واسعة من المواد. تشير تقارير الصناعة الحديثة إلى أن المناشير الشريطية ذات العمود المزدوج قد اكتسبت اعتمادًا كبيرًا في تطبيقات القطع الثقيلة نظرًا لقدرتها على التعامل مع المواد ذات القطر الكبير، والحفاظ على محاذاة الشفرة تحت الأحمال الثقيلة، وتوفير سرعات قطع أسرع مع اهتزاز أقل. يضمن البناء القوي للماكينة الدقة والموثوقية على المدى الطويل في بيئات الإنتاج الصعبة.

بناء الإطار والصلابة

ال double-column horizontal band sawing machine is built with a heavy-duty welded steel frame that provides exceptional rigidity and stability during cutting operations. The frame is constructed from thick steel plates that are precision-welded and stress-relieved to prevent distortion, ensuring the machine maintains its alignment over years of heavy use. The double-column design features two precision-ground guide columns that support the saw head, ensuring parallel movement and consistent blade alignment throughout the cutting cycle. The columns are equipped with linear bearings or hardened steel guideways that provide smooth, friction-free movement of the saw head. The frame construction absorbs vibration and cutting forces, resulting in improved blade life and surface finish. The frame includes integrated chip collection systems that facilitate continuous operation and maintain workspace cleanliness.

قدرة القطع وتعدد استخدامات المواد

ال double-column horizontal band sawing machine offers a wide range of cutting capacities to accommodate different workpiece sizes and materials. The machines are available with cutting capacities ranging from 250 to 1000 millimeters in diameter, allowing them to handle everything from solid bars and tubes to structural steel and large-diameter pipes. The machines can cut a variety of materials, including carbon steel, stainless steel, aluminum, copper, and alloys. The adjustable cutting speed and feed rate settings allow operators to optimize performance for different materials. Key cutting features include:

سرعة شفرة قابلة للتعديل لصلابة المواد المختلفة؛

• التحكم في معدل التغذية المتغير لتحقيق كفاءة القطع المثالية؛
• إغلاق تلقائي عند اكتمال القطع؛
• حماية الزائد لنظام محرك الشفرة.

ال machine's cutting capacity is matched by its ability to handle heavy workpieces, with the worktable designed to support large loads without deflection. The material handling system includes powered rollers or a conveyor.

نظام الشفرة وآلية الشد

ال double-column horizontal band sawing machine is equipped with a robust blade system that ensures consistent cutting performance and extended blade life. The blade system includes a precision blade guide that maintains blade alignment, a hydraulic or mechanical blade tensioning system that ensures proper tension for ideal cutting, and a blade drive system that delivers consistent power transmission. The blade guides are equipped with carbide inserts that support the blade during cutting. The blade tensioning mechanism is designed for easy adjustment, with a visible tension indicator that allows operators to verify proper tension. The blade system is protected by a safety cover that prevents accidental contact during operation. The blade life is extended by the machine's ability to maintain consistent tension.

ميزات نظام التحكم والأتمتة

ال double-column horizontal band sawing machine features an advanced control system that simplifies operation and improves cutting accuracy. The control system includes a digital display for cutting parameters, programmable feed rate and cutting speed controls, and automatic shut-off that activates when the cutting cycle is complete. The control system is designed for ease of use, with intuitive controls that allow operators to quickly set up and run cutting operations. The control system also includes diagnostic features that alert operators to potential issues.

ال machine can be equipped with optional automation features, including automatic material feeding systems and programmable cutting sequences, which further improve productivity and reduce operator involvement. The control system is designed for reliability, with components selected for their durability and resistance to shop floor conditions. The control system also supports integration with production management software for tracking and reporting.

النظام الهيدروليكي والتطبيقات

ال double-column horizontal band sawing machine incorporates a hydraulic system that powers key machine functions, including blade tensioning, vise clamping, and saw head feed. The hydraulic system is designed for smooth, controlled operation, with adjustable pressure and flow settings that allow operators to fine-tune performance for different materials. The machine includes a chip conveyor or coolant system that removes cutting debris and cools the blade during operation.

ال double-column horizontal band sawing machine serves a wide range of industries and applications. In steel service centers, it processes large-diameter bars and structural sections. In heavy manufacturing, it cuts components for machinery and equipment. In oil and gas, it cuts pipe and tubing. The machine is also used in shipbuilding, construction, and mining equipment fabrication. Proper selection ensures consistent, accurate cutting over long production runs.
